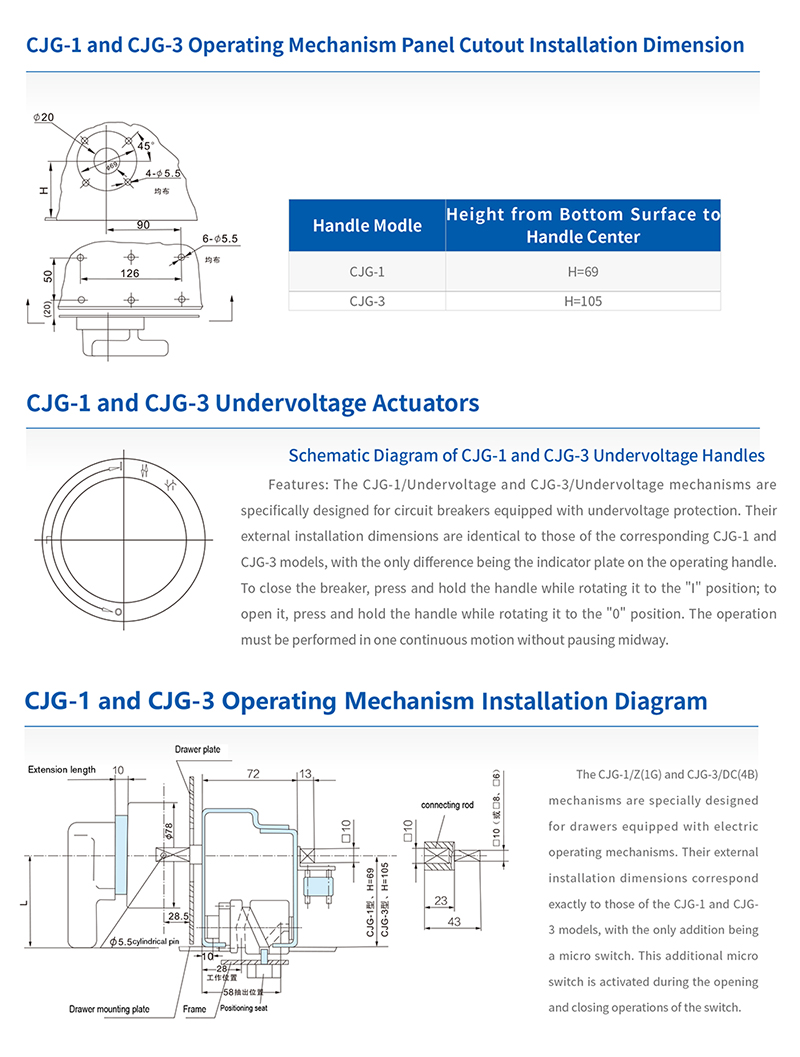

CJG-1 Type Operating

1 . Working Position:Main switch closed, assembly locked.

2.Main Switch Open Position:Main circuit disconnected, control circuit remains connected, assembly locked.

3.Test Position:Main switch open, control circuit connected, assembly locked.

4.Withdrawn Position:Both main circuit and control circuit disconnected.

5.Isolation Position:Withdrawn by 30 mm, both main circuit and control circuit disconnected, assembly locked.

6.The operating handle must be pressed inward before it can be turned from the “0” position to the “I” position to open or close the circuit breaker.
