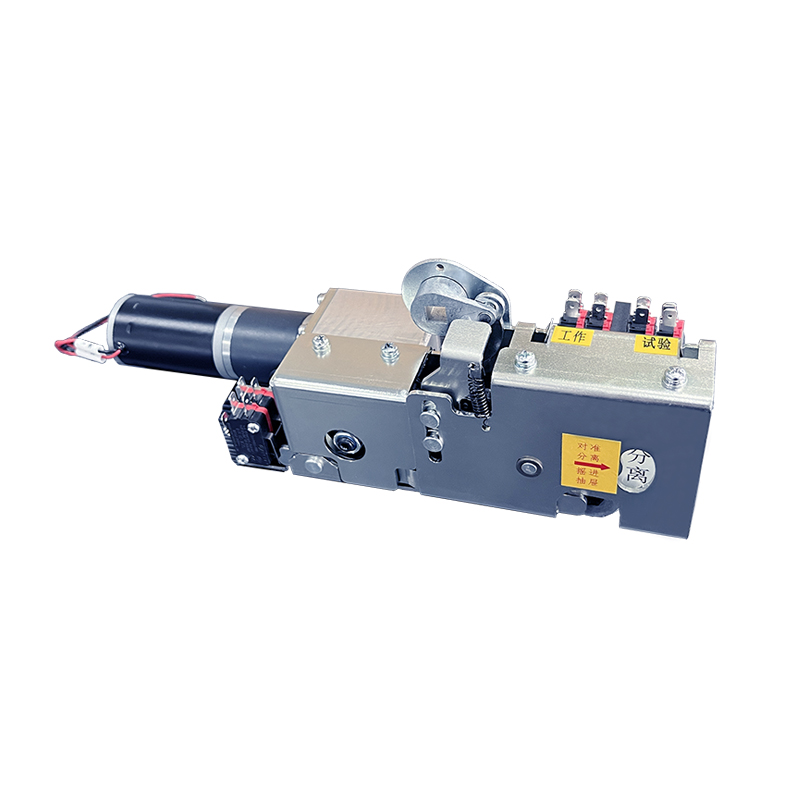

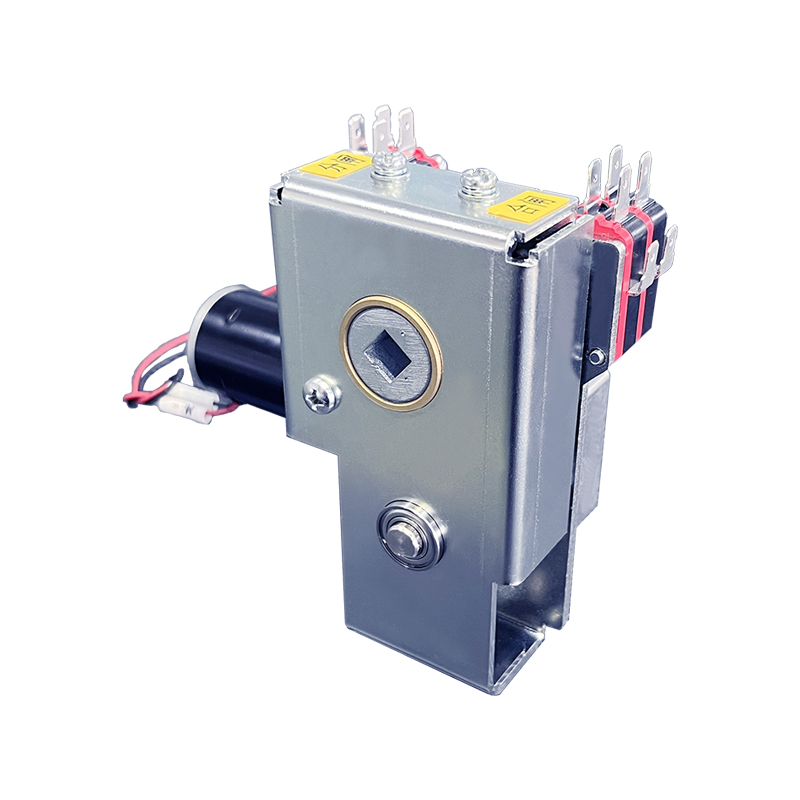

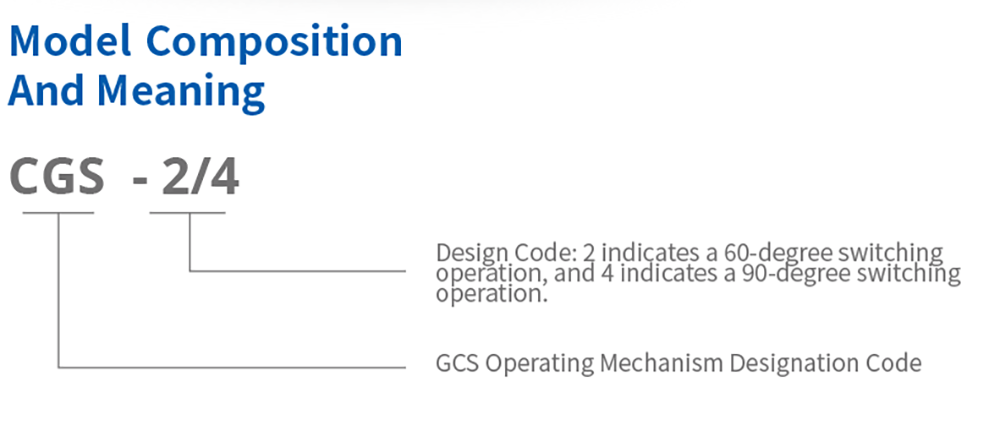

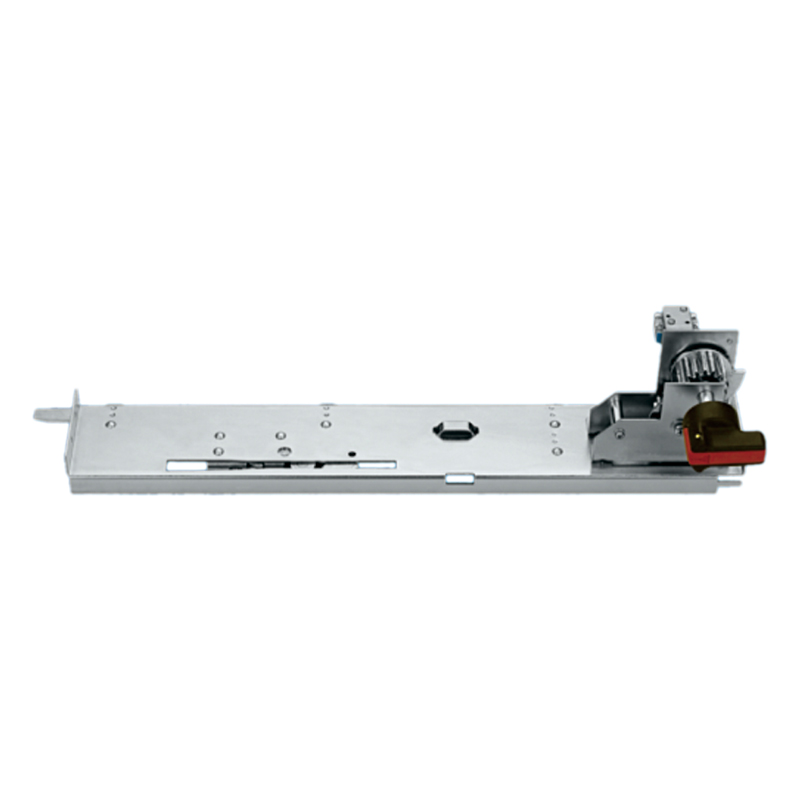

CJG-2 and CJG-4 operating mechanisms are specifically designed for 1/2-cell drawers used in GCS-type low-voltage draw-out switchgear. They enable the functions of opening, closing, testing, isolating, and locking, which are operated from the drawer panel. Additionally, a micro switch is mounted on the operating mechanism. It serves to electrically interlock the switching apparatus as the operating handle rotates within a 360° range.
CJG-2 and CJG-4 operating mechanisms are specifically designed for 1/2-cell drawers used in GCS-type low-voltage draw-out switchgear. They enable the functions of opening, closing, testing, isolating, and locking, which are operated from the drawer panel. Additionally, a micro switch is mounted on the operating mechanism. It serves to electrically interlock the switching apparatus as the operating handle rotates within a 360° range.

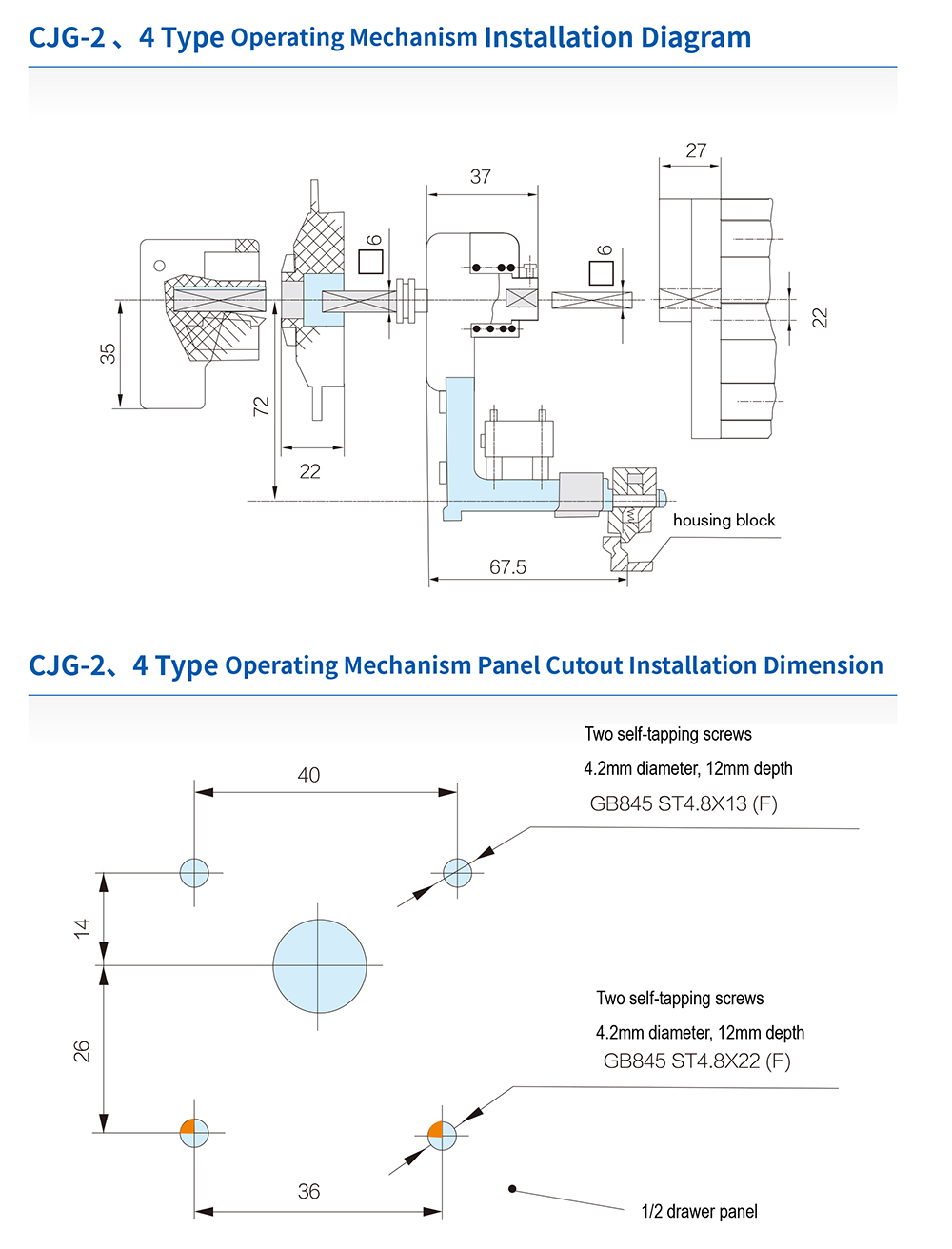

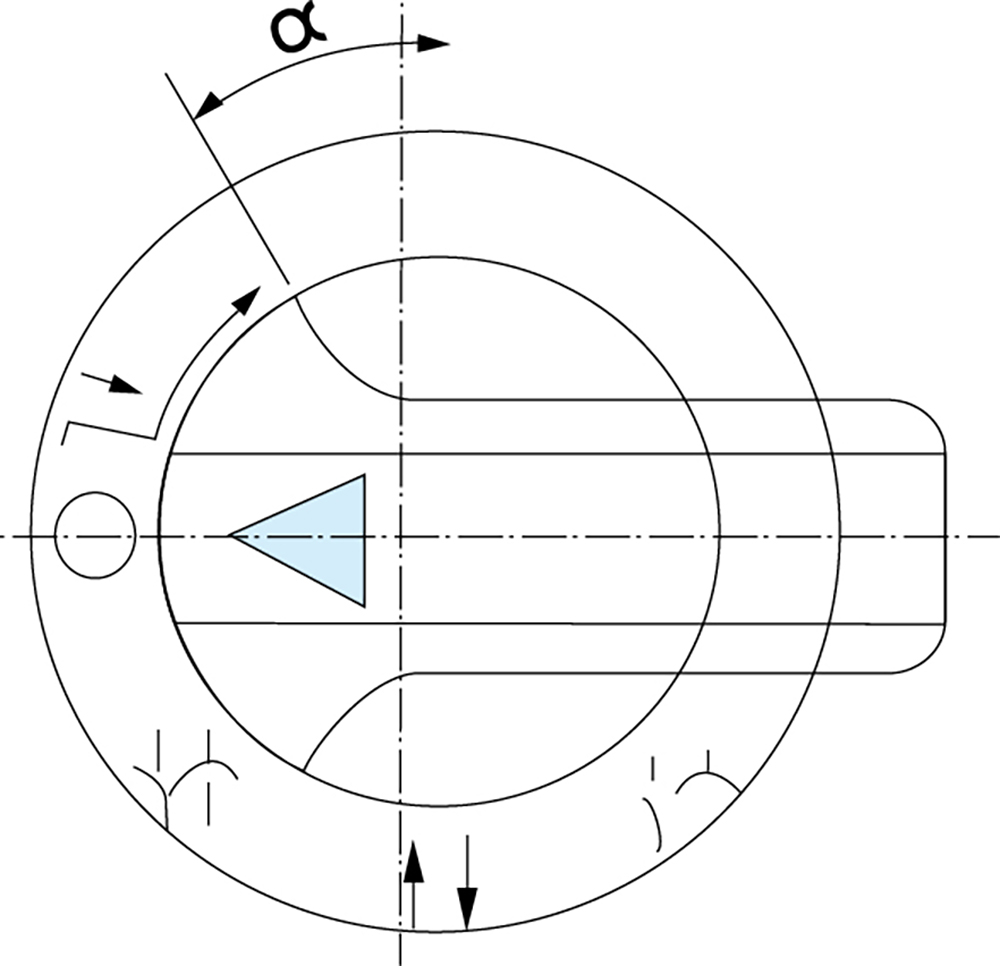

1.Working Position: Main switch closed, assembly locked.
2.Main Switch Tripped: Main circuit open, control circuit remains energized, assembly locked.
3.Test Position: Main switch open, control circuit energized, assembly locked.
4.Withdrawn Position:Both main circuit and control circuit disconnected.
5.Isolation Position:Withdrawn by 30 mm, both main circuit and control circuit disconnected, assembly locked.
6.The operating handle must be pressed inward before it can be rotated from position 0 to position I to open or close the circuit breaker.
