Electric Drive Mechanism SKC-SYDD2

The SKC-SY/DD2 series electric drive interlock mechanism adds motorized operation to the original second-generation cabinet’s XJY1 hand-crank interlock. It uses a specially designed miniature permanent magnet DC motor, maintaining the original installation dimensions and interlock functions while utilizing spare space in the drawer. Equipped with a clutch, it allows both manual and motorized operation, featuring a simple and highly versatile design.

FEATHER

Integrated structure

Retaining the mechanical interlock for closing

with manual priority function

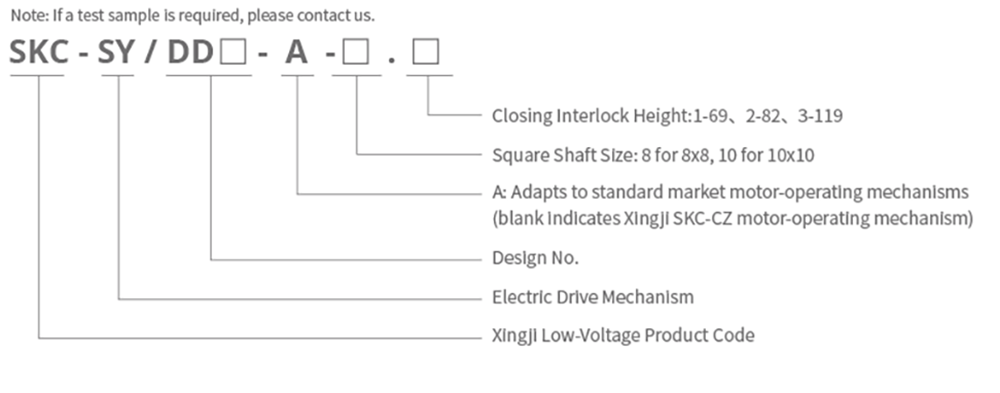

Model Composition And Meaning
