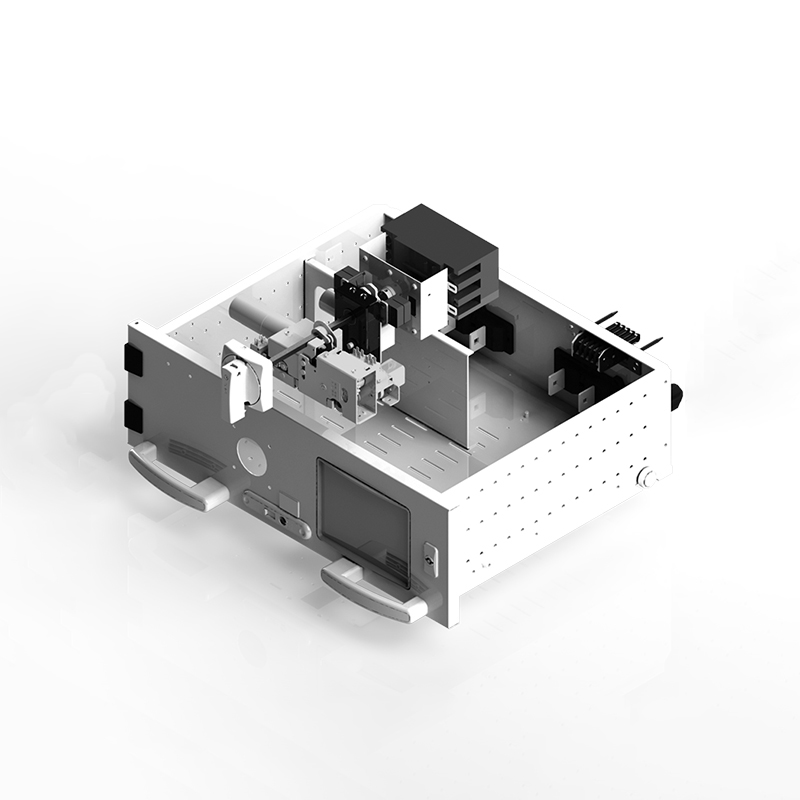

The CZ/DD2 series motorized operating mechanism adds electric drive functionality to the original CZ2 and CZ3 series low-voltage manual operating mechanisms, providing the essential hardware foundation for achieving intelligent, programmable, and remote-controlled switchgear. It employs a specially designed miniature permanent magnet DC motor, making full use of the available space within the original drawer and mounting directly onto the existing square shaft. This design requires no changes to the original manual mechanism’s height, external dimensions, installation specifications, or interlock functions. After each motorized operation, it automatically reverts to manual mode, enabling both manual and electric operation. The mechanism features a simple structure and broad compatibility.
The CZ/DD2 series motorized operating mechanism adds electric drive functionality to the original CZ2 and CZ3 series low-voltage manual operating mechanisms, providing the essential hardware foundation for achieving intelligent, programmable, and remote-controlled switchgear. It employs a specially designed miniature permanent magnet DC motor, making full use of the available space within the original drawer and mounting directly onto the existing square shaft. This design requires no changes to the original manual mechanism’s height, external dimensions, installation specifications, or interlock functions. After each motorized operation, it automatically reverts to manual mode, enabling both manual and electric operation. The mechanism features a simple structure and broad compatibility.
FEATHER
Retain handle operation
equipped with a clutch to accommodate both manual and electric operation

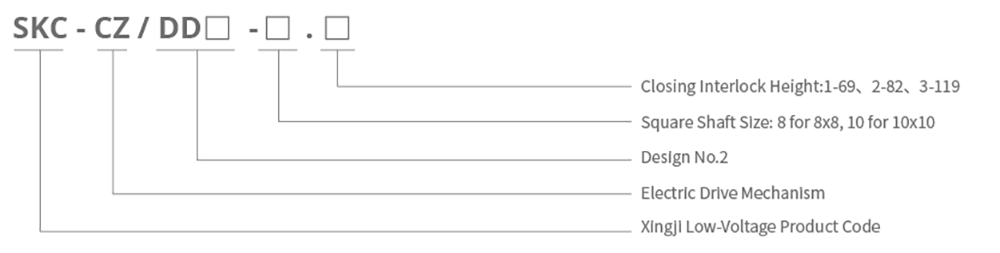

Model Composition And Meaning
