1.Earthing switch (earthing interlock) intelligently retrofitted to motorized operation.
2.For KYN-28A withdrawable switchgear, modifications to mechanical earthing interlock
As follows to meet retrofit projects:
Replace special electric components for earthing interlock, selected with or without manual priority function.
Two types of earthing interlock: 90° crank arm operation & 180° bevel gear operation, with corresponding accessories and motorized mechanisms.
Add electric drive mechanism for earthing switch; drilling drawing refers to the figure above.
Use matching earthing switch motor control module supplied by our company.
1.Earthing switch (earthing interlock) intelligently retrofitted to motorized operation.
2.For KYN-28A withdrawable switchgear, modifications to mechanical earthing interlock
As follows to meet retrofit projects:
Replace special electric components for earthing interlock, selected with or without manual priority function.
Two types of earthing interlock: 90° crank arm operation & 180° bevel gear operation, with corresponding accessories and motorized mechanisms.
Add electric drive mechanism for earthing switch; drilling drawing refers to the figure above.
Use matching earthing switch motor control module supplied by our company.
Complementary products:
The entire Primary Metal-Clad Switchgear series

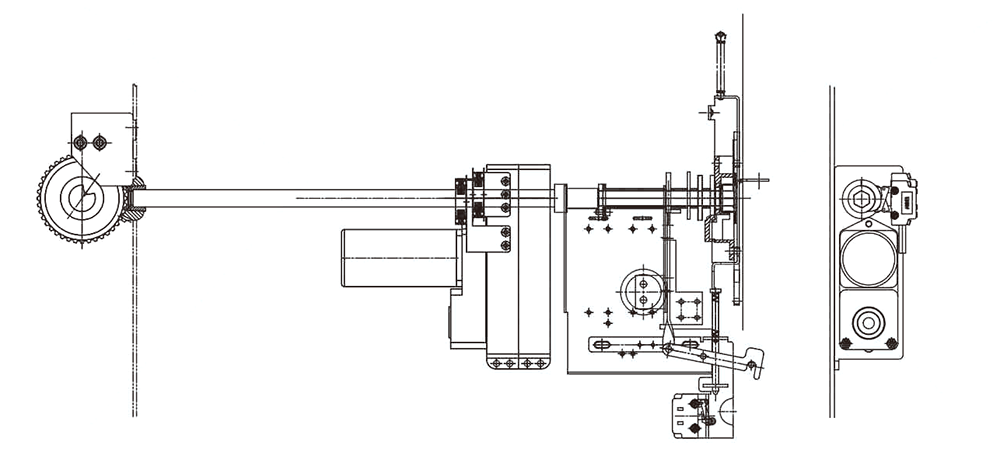

KYN.5XJ.355.013 (Suitable for bevel gear type structure)
KYN.5XJ.355.013.1 (Suitable for crank arm type structure)
