The RC series secondary connectors are patented products designed and developed according to market customer requirements. They feature a closed structure, ensuring safety and reliability. The RC1 and RC2 models are equipped with automatic guiding devices for convenient and accurate insertion and withdrawal. The RC3 model features an automatically adjustable mounting bracket structure, which reduces the installation dimensions, and offers both panel mounting and base plate mounting options.
The RC series secondary connectors are mainly used in low-voltage withdrawable switchgear and controlgear assemblies as electrical connecting elements for auxiliary circuits. They are particularly suitable for drawer-type switchgear such as GCK, GCS, and MNS.

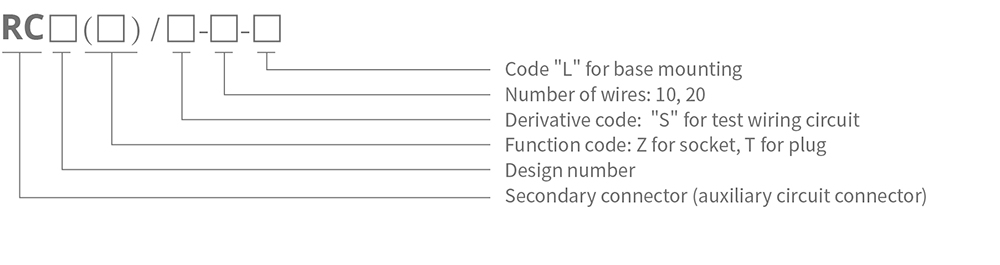

RC Type Secondary Connector’s Composition and Meaning：

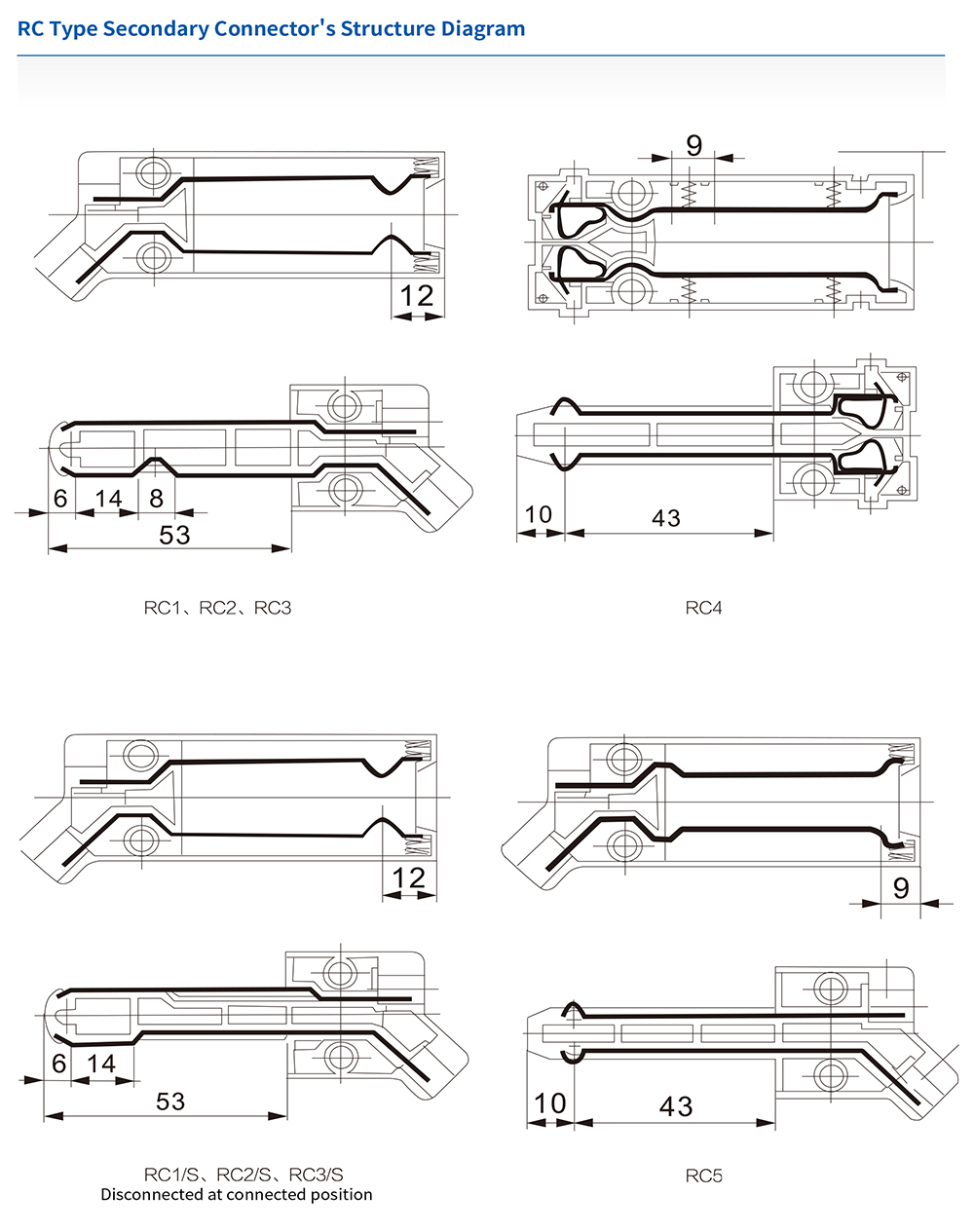

Test wiring description: To facilitate user design and selection, our factory has developed a set of test wiring terminals based on market demand. These terminals are conductive in the test position but disconnected in the working position. Their structure is shown in the left figure.
For this function, add “S” to the model number (e.g., RC2/S-10). Standard configuration modifies only terminal 2 in the first group. Contact us for other special requirements.
 |
 |
