USES: GZD-58 secondary plug, GZS11 with VS1, VD4 and other intermediate high voltage switchgear secondary line connection.
Basic parameters: rated voltage: AC 380V, DC 220V;
Rated current: AC 10A;
Mechanical life: 2000 times.
USES: GZD-58 secondary plug, GZS11 with VS1, VD4 and other intermediate high voltage switchgear secondary line connection.
Basic parameters: rated voltage: AC 380V, DC 220V; Rated current: AC 10A; Mechanical life: 2000 times.
Note: Accessory: pins (with spring) and the connecting pin jack (with spring) provided with the socket are only limited to the use of wires of 1. 5mm2 or below; Please specify when ordering if used for 2.5mm2 or 4mm2.

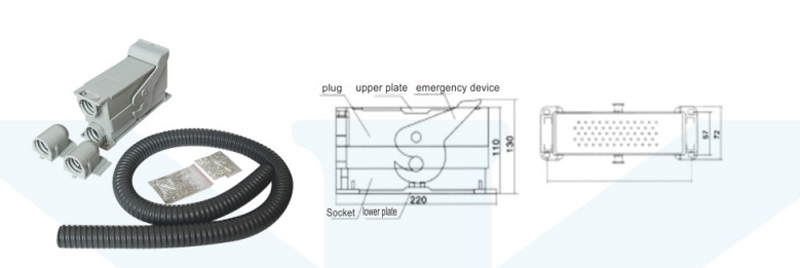

Configuration table: 1 plug, 1 socket, 2 turm heads, 1 metal hose, one package of pin and one package of pin jack.
