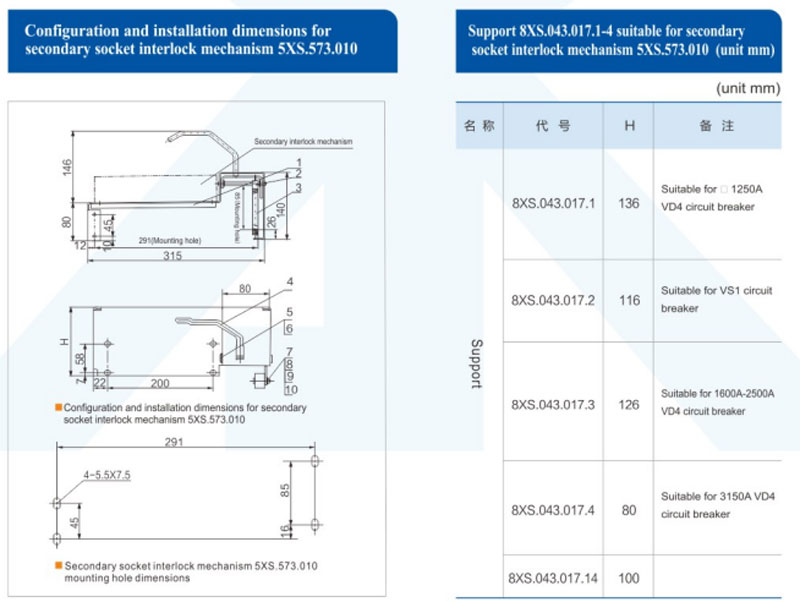

This secondary Socket interlocking device locate at upper of switchgear which help control cabinet work.
This secondary Socket interlocking device locate at upper of switchgear which help control cabinet work.

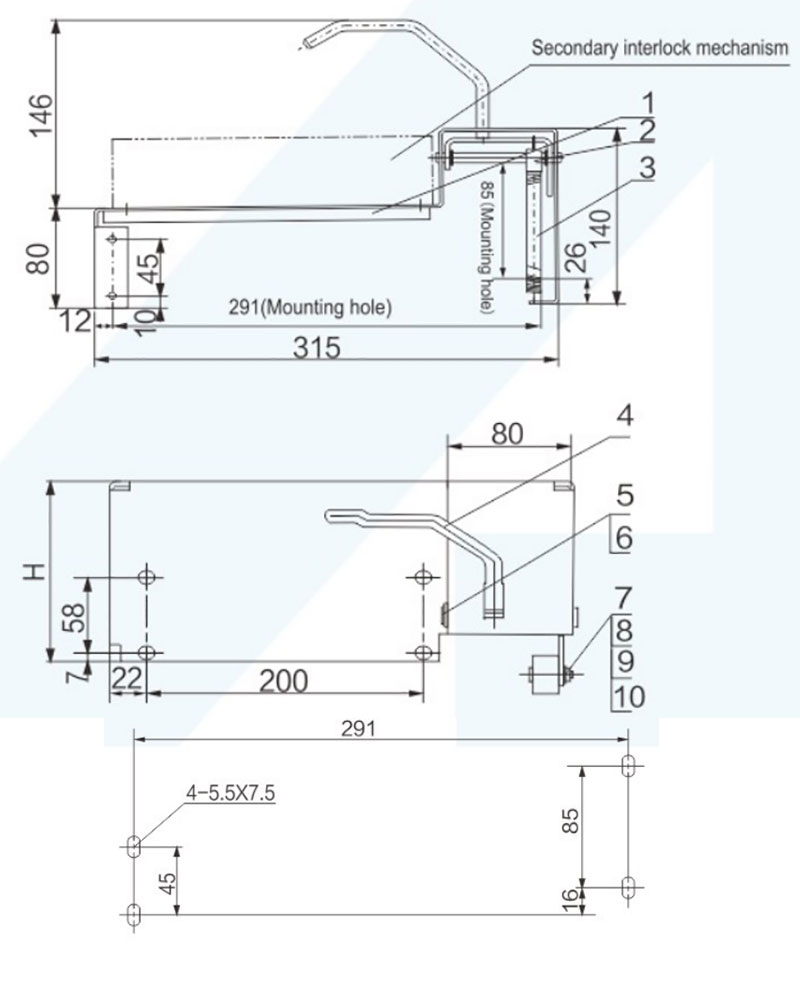

| No. | Item | Code | Qty |
| 1 | Support | 8XS.224.021 | 1 |
| 2 | Rollar | 8XS.224.021 | 1 |
| 2 | Tension spring | 8XS.288.015 | 1 |
| 3 | Tension spring | 8XS.288.015 | 1 |
| 4 | Interlock rob widing | 5XS.174.017 | 1 |
| 5 | Shaft | 8XS.200.020 | 1 |
| 6 | Split baffle ring Φ6 | GB896-88 | 2 |
| 7 | Screw | 8XS.900.010 | 1 |
| 8 | Nut M5 | GB6170-86 | 1 |
| 9 | Wahser Φ5 | GB93-87 | 1 |
| 9 | Wahser Φ5 | GB97.1-85 | 1 |
