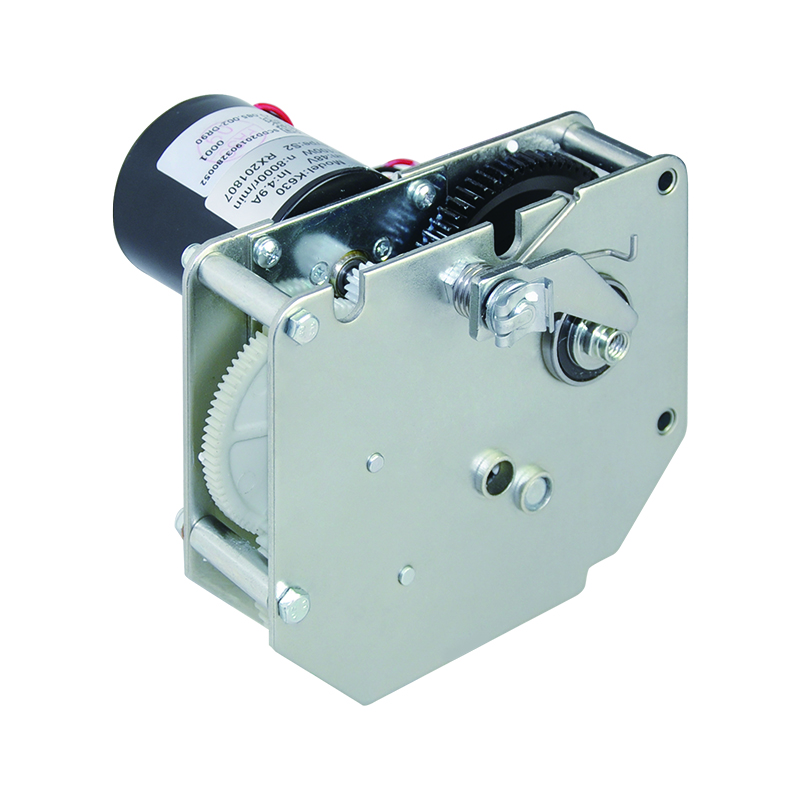

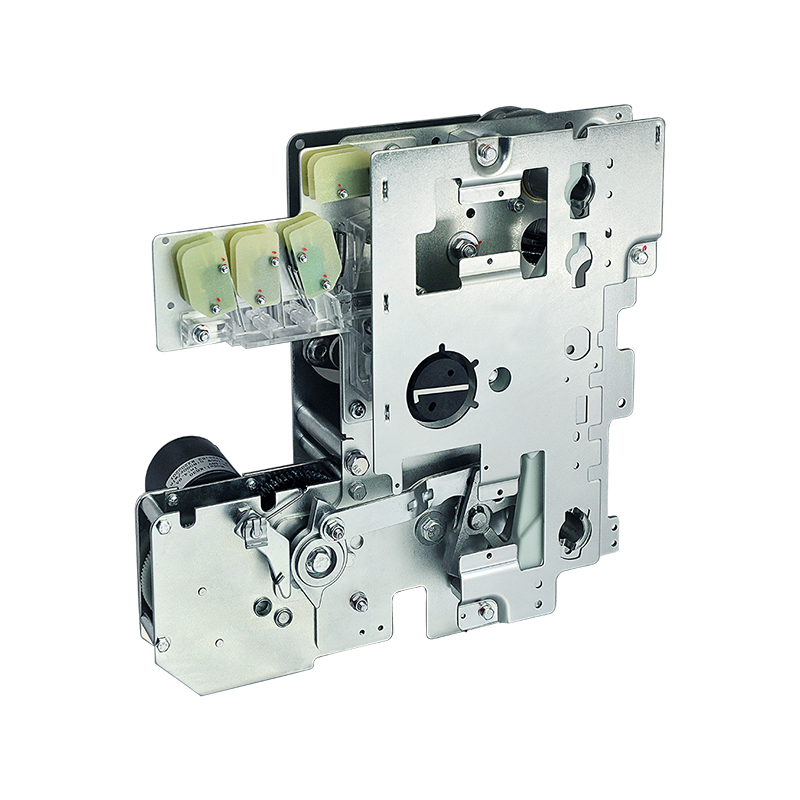

SPE 02 Spring Operating Mechanism is designed for FLRN36-12D/T100-31.5 and FLN36-12D/630-20 indoor 12KV SF6 load break switches. It uses a compression spring over-center release principle and has three positions: close, open, and earth. Output angle: approx. 60°. Avg. closing/opening speed: ≥3 m/s. Mechanical endurance: 5000 close operations, 3000 earthing operations. Features fuse trip function and optional shunt trip coil. Complies with GB3804-1990 and GB16926-1997.
SPE 02 Spring Operating Mechanism is designed for FLRN36-12D/T100-31.5 and FLN36-12D/630-20 indoor 12KV SF6 load break switches. It uses a compression spring over-center release principle and has three positions: close, open, and earth. Output angle: approx. 60°. Avg. closing/opening speed: ≥3 m/s. Mechanical endurance: 5000 close operations, 3000 earthing operations. Features fuse trip function and optional shunt trip coil. Complies with GB3804-1990 and GB16926-1997.

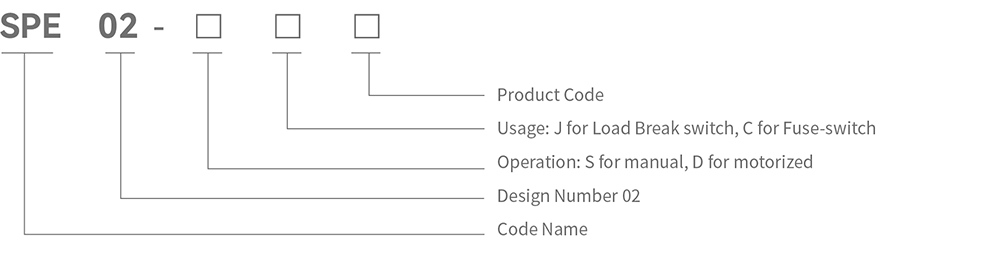

Model Composition and Meaning：

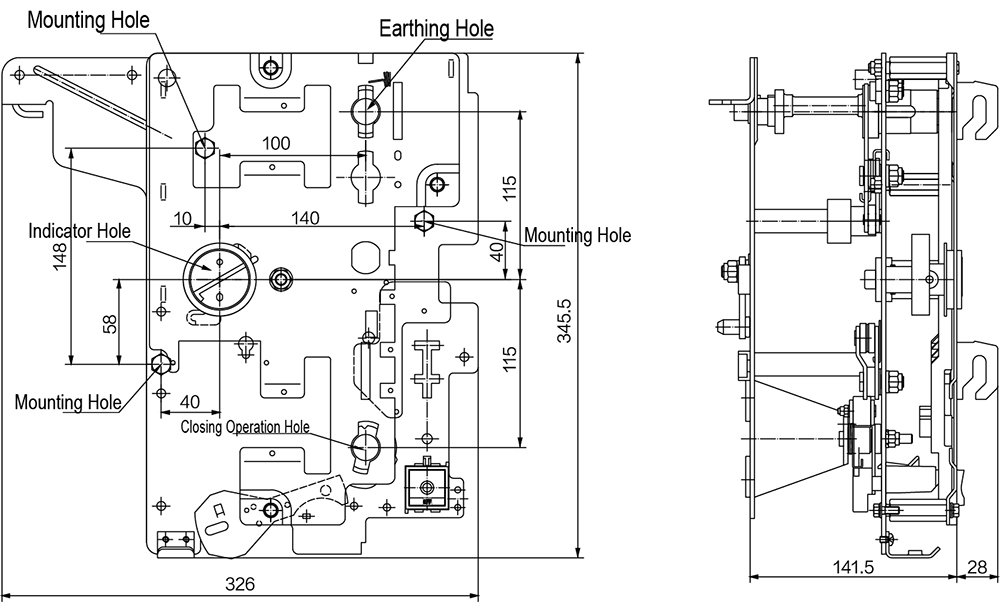

Load Break Switch Closing Operation
Insert the operating handle into the lower hole of the closing operation shaft (bottom right corner) and rotate 180° clockwise. The mechanism drives the contacts to quickly perform the load switch closing operation.
Load Break Switch Opening Operation
Rotate the operating handle 180° counterclockwise to complete the operation.
Load Break Switch Earthing Operation
Insert the operating handle into the earthing operation shaft hole (top right corner) and rotate 180° clockwise. The mechanism drives the contacts to quickly perform earthing closing. To perform the earthing switch opening operation, simply insert the operating handle into the earthing operation shaft and rotate 180° counterclockwise.
