XFZ1 series circuit distribution adapter units are used for power distribution and connection of 1/2 and 1/4 drawer functional units in low-voltage withdrawable switchgear and controlgear assemblies. By operating in conjunction with the 1/2 and 1/4 drawers, they enable the operation, control, protection, and power connection of the functional units. The 1/2 drawer is available with two center distances: 283mm and 298mm. The center distance for the 1/4 drawer is 141.5mm.
XFZ1 series circuit distribution adapter units are used for power distribution and connection of 1/2 and 1/4 drawer functional units in low-voltage withdrawable switchgear and controlgear assemblies. By operating in conjunction with the 1/2 and 1/4 drawers, they enable the operation, control, protection, and power connection of the functional units. The 1/2 drawer is available with two center distances: 283mm and 298mm. The center distance for the 1/4 drawer is 141.5mm.

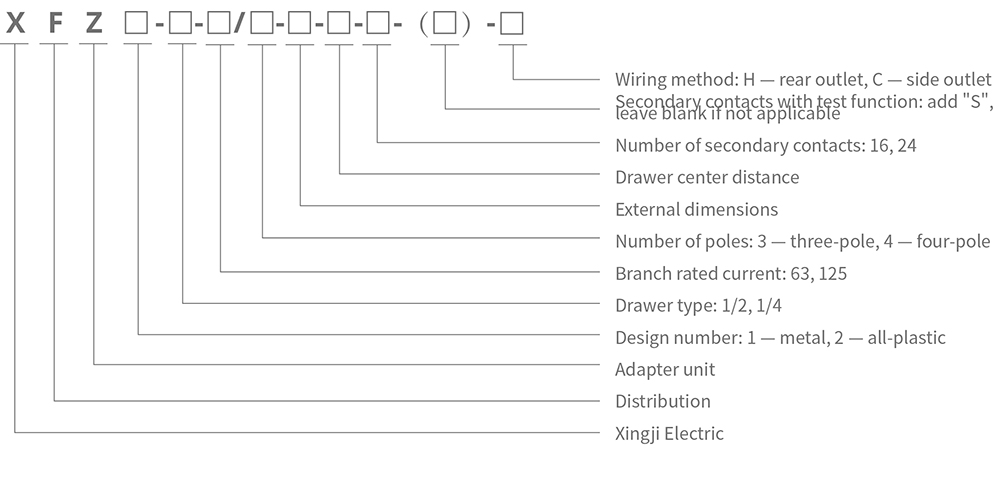

Model Composition And Meaning

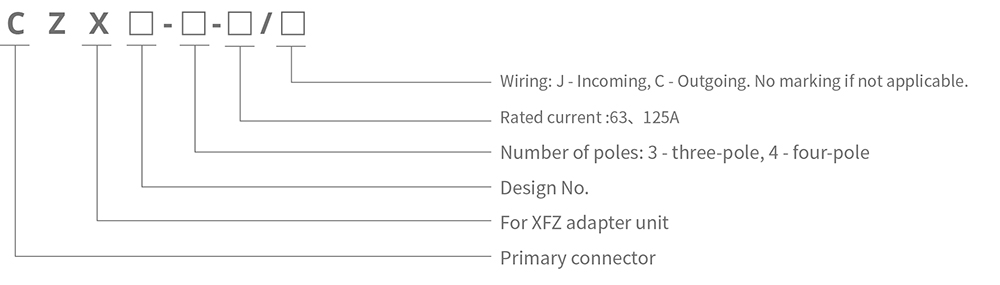

Matching Primary Plug’s Model And Meaning
Matching Primary Plug’s Model And Meaning
