SPD 07 (S for Manual, M for Motorized) spring operating mechanism complies with GB1984-2003 for high-voltage AC circuit-breakers, is compatible with XGN-12/630-20 series products, features auto-reclosing function and compact design, with rated voltage of DC220V/110V/48V/24V, output angle of approx. 83°, average opening speed of 1.2 ± 0.2 m/s, average closing speed of 0.8 ± 0.2 m/s, and mechanical endurance of 10,000 operations.
SPD 07 (S for Manual, M for Motorized) spring operating mechanism complies with GB1984-2003 for high-voltage AC circuit-breakers, is compatible with XGN-12/630-20 series products, features auto-reclosing function and compact design, with rated voltage of DC220V/110V/48V/24V, output angle of approx. 83°, average opening speed of 1.2 ± 0.2 m/s, average closing speed of 0.8 ± 0.2 m/s, and mechanical endurance of 10,000 operations.

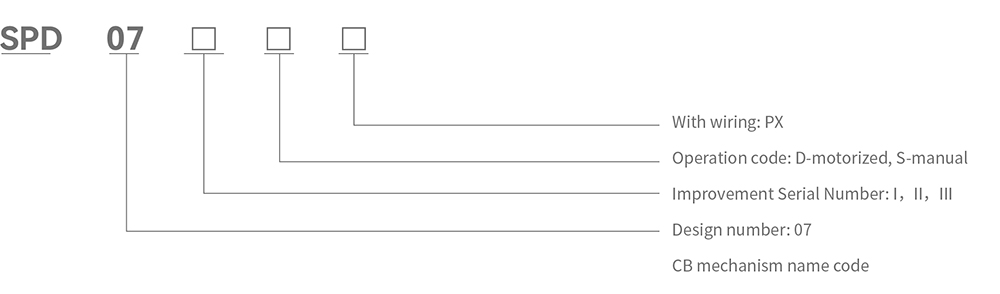

Model Composition and Meaning：
